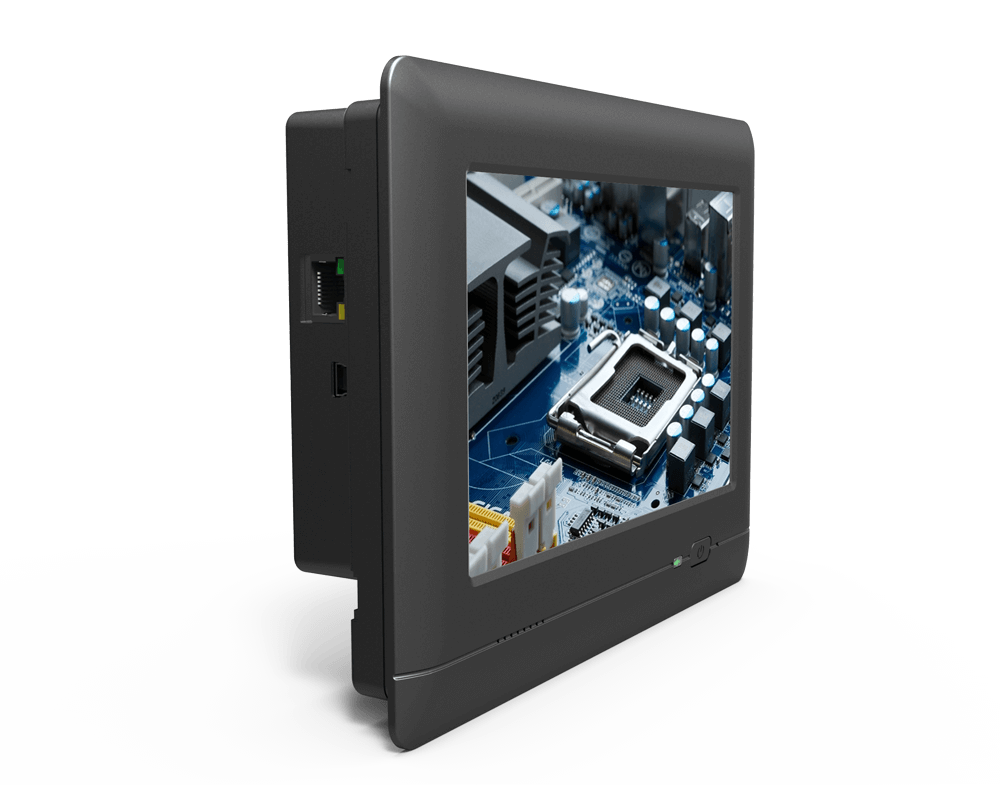

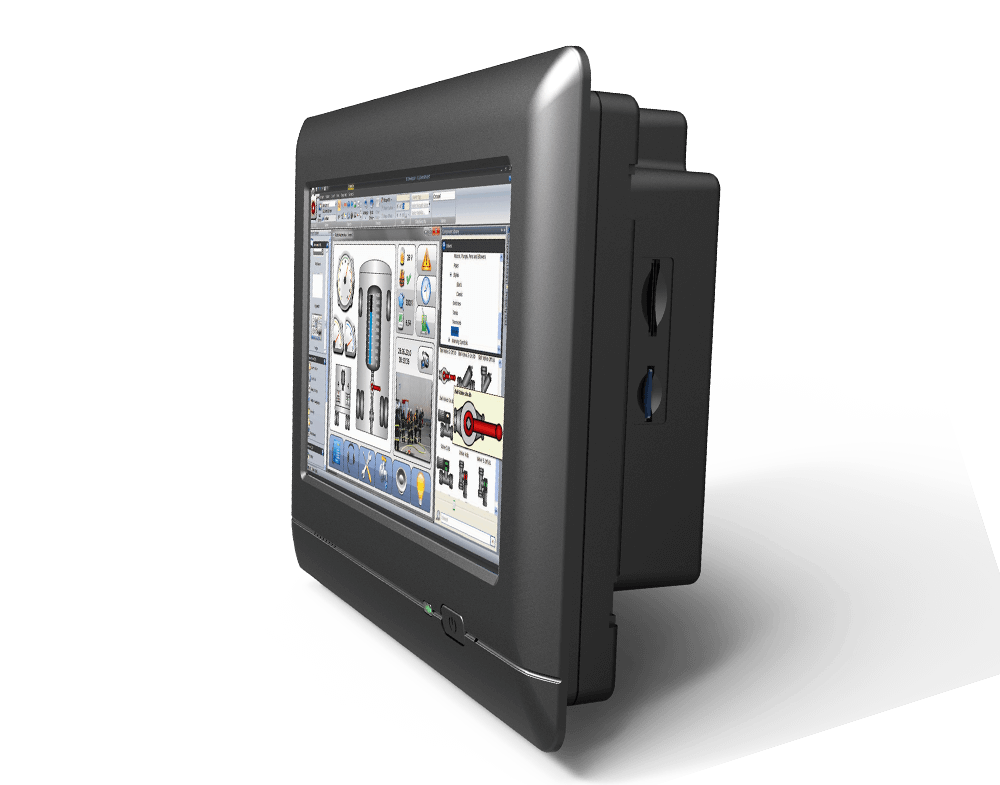

Model Number: EB-706PC
7 inch wide colour TFT LCD display
800*480 resolution
Touch Screen panel
SD card supports
Ethernet supports
RS232 × 1 / RS422 × 1 or RS232 × 2 (RS485 option)
Speaker with Audio output
USB Host 2.0* 1, Mini USB Device 2.0*1 (active sync)
Keyboard or Mouse supports
TI 3352, 600MHz processor
ARM Cortex-A8 architecture
4GB Flash ROM + 512MB DDR3 RAM
Windows CE 7.0
This Windows CE 7.0 based Industrial Panel PC that has more I/O connections and is easier to mount on the wall or on your machine.
rich resource working with windows CE 7.0 to apply in different fields, eg. fleet management, large warehouse managment, agriculture and construction verhicle, manufacturig,retail, portable medfical device, human-machine interface, catering and entertainment, etc.
| Display Screen | 7 inch LED backlit LCD Display |
| Resolution | 800*480 (1,152,000 pixels) |
| Touch Panel | 4-wire resistive touch screen |
| Brightness | 300cd/㎡ |
| Aspect Ratio | 16:9 |
| OS | Windows CE 7.0 |
| CPU | TI 3352, 600MHz processor |
| Memory | 4GB Flash ROM + 512MB DDR3 RAM |
| Expansion Storage | Micro SD Card / USB Flash Memory SD card supports up to 8G (internal & external) |
| Transfer Interface | 10 / 100M Ethernet supports USB Host 2.0× 1, Mini USB Device 2.0 × 1 (active sync) RS232 × 1 / RS422 × 1 or RS232 × 2 |
| Speaker | 1W |
| Power consumption | ≤7W / ≤ 10W (with battery) |
| Working Temperature | -20 – 60ºC / 0 – 50ºC (with battery) |
| Storage Temperature | -30 – 70ºC / -10 – 60ºC (with battery) |
| Power Supply | DC 9-36V / DC 11-36V (with battery) |
| Dimension(LWD) | 200 × 151 × 48 mm |
| Weight | 516g / 610g (with battery) |
