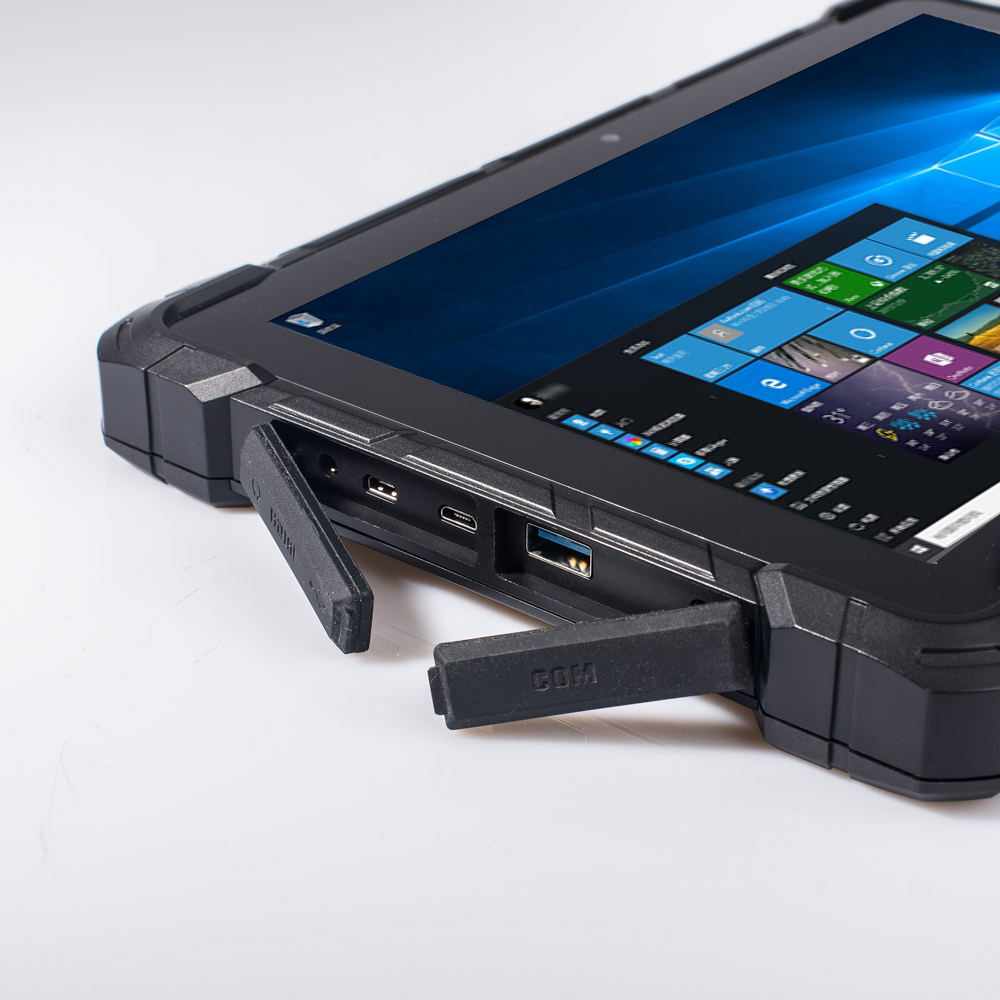

Model Number: EB-101GF
IP67 rated Windows Rugged Tablet
10.1" IPS LCD display
Intel Z8350 CPU
RAM 4GB+64GB
Wi-Fi
1*RJ-45 port
HDMI out
RS-232(DB9)
10.1" Windows 10 Rugged Industrial Tablet PC
As a Portable rugged control terminal, which are widely applied in logistics and warehouse management, automobile diagnosis, medical treatment, drones , etc.
Mobile Real-time data network connection. The EB-101GF offers Wi-Fi, Bluetooth and optional 4G to enable robust communications anytime and anywhere. With built-in 5.0 MP rear camera & 2 MP front camera, The operator can capture photos, videos communication.
| LCD Panel | Screen Size | 10.1" | ||||
| Screen Resolution | 1200×1920 (IPS+FHD+300ANSI) (Standrd) | |||||
| 800×1280 (IPS+HD+500ANSI) (Optional, For MOQ order) | ||||||
| Touch Screen | Touch Module | G+G Multi-Touch | ||||
| Battery | Type | Rechargeable lithium polymer | ||||
| Capacity | 12000mAh/3.7V | |||||
| Working Time | Over 8 hours (FHD local video display) | |||||
| System Hardware Configuration: | ||||||
| Type | Details | Descriptions | ||||
| CPU | Type | Intel Cherry Trail x5-Z8350 Quad-Core | ||||
| Speed | 1.44GHz ~ 1.92GHz | |||||
| GPU | Type | Intel HD Graphics Gen8 | ||||
| Memory | Capacity | 4GB | ||||
| Storage | eMMC | 64GB | ||||
| SSD | / | |||||
| SATA 2.5“ HDD | / | |||||
| Camera | Front | 2M | ||||
| Rear | 5M | |||||
| Speaker | Built-in | 8Ω/1W with water proof | ||||
| Micphone | Built-in | Yes | ||||
| G-sensor | Built-in | Yes | ||||
| Network Connections: | ||||||
| Type | Details | Descriptions | ||||
| WIFI | WIFI Module: Broadcom AP6255/AP6256 | WIFI 802.11ac/b/g/n 2.4G&5Ghz Dual-band | ||||
| Bluetooth | BT Module: Broadcom AP6255/AP6256 | Bluetooth4.0 | ||||
| 3G/4G LTE | Optional | Optional with external small PCBA | ||||
| QR code Scanners | Optional | Optional | ||||
| NFC | Optional | Optional | ||||
| GPS | BD2/GPS | Optional | ||||
| Fingerprinter | Capacitive fingerprint sensor | Optional | ||||
| Ethernet Network | RJ-45 | 1000Mbps Gigabit Lan | ||||
| Interface Configuration: | ||||||
| Type | Details | Descriptions | ||||
| USB Interface | USB3.0 | ×1pc | ||||
| USB2.0 | ×2pcs (USB2.0 TypeA×1 + Micro USB2.0×1) | |||||
| SD / TF Card reader | TF Card reader | ×1pc (up to 128GB) | ||||
| SIM Card Slot | SIM Slot for 3G/4G LTE | Optional | ||||
| Audio Jack | 3.5mm standard | ×1pc | ||||
| HDMI | Micro HDMI 1.4 | ×1pc | ||||
| Video output through HDMI | Up to 4K | |||||
| COM Port | DB9 (RS232) | ×1pc (External small PCBA) | ||||
| Button Switch: | ||||||
| Type | Details | Descriptions | ||||
| Power | On/Off | ×1pc | ||||
| Volume | Down/UP | ×1pc | ||||
| CMOS Reset | Reset by Short Press | / | ||||
| Main Accessories: | ||||||
| Type | Details | Descriptions | ||||
| Power adapter | DC 5V/3A | ×1pc | ||||
| User's Manual | User's Manual | ×1pc | ||||
| Handle Straps | Optional | Optional | ||||
| Extension Docking | USB2.0×1pc ; DC IN × 1pc | Optional | ||||
| Software Configuration: | ||||||
| Type | Details | Descriptions | ||||
| Wake up on Lan | Wake up on Lan by RJ45 | / | ||||
| PXE | Preboot Execution Environment | / | ||||
| Operating System | Windows 10 | Optional | ||||
| Linux | Test by end user | |||||
| Environment: | ||||||
| Temperature | Operation Temperature | -10oC ~ 55oC (1080p or 4K local video display) | ||||
| Storage Temperature | -20oC ~ 70oC (Restore to Operation Temperature 2hr before use) | |||||
| Humidity | Oprating Humidity | 35% ~ 80% relative humidity, Non-condensing | ||||
| Storage Humidity | 20% ~ 93% relative humidity, Non-condensing | |||||
| Certification: | ||||||
| IP67 | IP67 Certification | Yes | ||||
