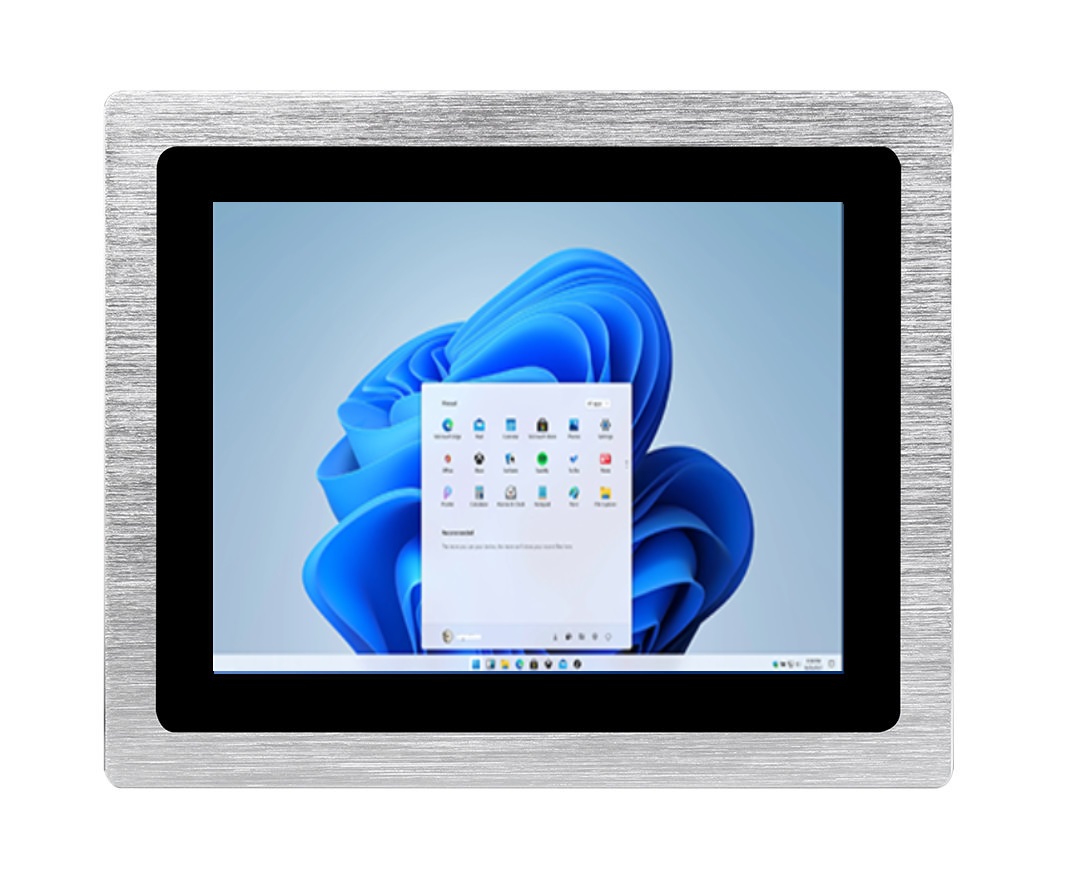

8″ Industrial Panel PC


8 inch Fully Flat Front Bezel with Capactive Touch Screen
High Brightness LCD display
Intel Celeron J1900 Quad-Core CPU
Fanless Design
Aluminum Housing
Support VESA mount, panel mount

Model Number: EB-ZG80

Make Inquiry Now

The EB-ZG80 Industrial Panel PC have less downtime and extended operational lives as they are not susceptible to overheating problems caused by fan failures.

The EB-ZG80 Industrial Touch Screen Computer features an 8" (800*600 resolution) high brightness (800+ nits) display that can be suitable for outdoor working for day/night environments.

Supplied with an Intel Bay Trail J1900 2.0GHz Quad Core CPU, EB-ZG80 Series provide a state of the art fanless and energy efficient multi-core platform for industrial automation applications.
The EB-ZG80 is supplied with a up to 8 GBytes of DDR3L memory and features an internal SSD plus for operating system and data storage.

The EB-ZG80 Panel PC with rich input/output for industrial application, include DC Power, USB ports,  COM port and LAN ports for communication and a HDMI video port for displays.

The EB-ZG80 All-in-one Touch Computer is housed in a Metal Aluminum engineering grade case and is designed to be VESA mounted.
This slim Panel PC can be mounted to your OEM machine via its VESA mounting holes, or clip holes for embedded installations.

 CPU  Onboard Intel Bay Trail J1900 (2.4GHz) Processor
 System Chipset  Intel Bay Trail SoC
 System Memory  Onboard 2GB DDR3L RAM


 Display Type  8 inch LED backlight LCD
 Max. Resolution  800*600
 Max. Color 16.2M
 Luminance (cd/m²)  800
 Contrast Ratio  500 : 1
 View angle(H°/V°)  70/70/50/70(L/R/U/D)
 Backlight Lifetime  >40,000(hrs)


Touch screen - Projected Capacitive Type
Type  projected capacitive touchscreen
Interface  USB
Light Transmission(%)  Projected Capacitive Touch: 80%




 I/O Port
 USB  2 x USB 2.0 or   2 x USB 3.0
 Serial/Parallel  RS-232/422/485 (Default RS-232)
 Audio  1 x Audio Line Out / 1 x HDMI Port
 LAN  1 x Realtek RTL8111E, 1*10/100/1000MBit RJ45 Ports
 Power  DC Power input
power on/off button





 Onboard expansion bus  1 x Internal mini PCIe slot (full size)



 Power Requirement
 Power Input 12V (option 9~36V)



 OS Support Windows or Linux OS


IP Rating  Aluminum Die-casting Front Bezel and Chassis
Mounting  Panel Mounting, VESA 75 x 75, 100*100

Specifications are subject to change without notice.
